T-Box drying tunnel

silk screen

T-Box drying tunnel

The new « T-BOX » has been designed to cure textile inks: water base inks, plastisol inks, solvent based inks.



2 models are available:

  • T-BOX 80 (1 ou 2 element(s))
  • T-BOX 120 (1 ou 2 element(s))


Characteristics

  • Assembled with middle waves radiant transmitters, this new dryer will offer new benefits:
  • Quicker starting temperature: 5 min in average.
  • Perfect curing solution to limit fabrics bleedings.
  • Shorter curing time
  • Higher reactivity while switching curing temperatures parameters
  • Better resistance to draught
  • Higher drying productivity (+33%): the 1 element heating dryer (1,3 m) T-BOX equals to a 2 elements heating standard infrared dryer (2,6 m).
  • The optimized size of its frame will perfectly fit with small size workshops.

Also available from our range

T-IR drying tunnel

silk screen

T-IR drying tunnel

Infrared Drying tunnel is dedicated to polymerise water based and plastisol inks used in the textile industry. It can also be used for solvent based inks (epoxy, polyurethane, glycero…) printed on IR resisting surfaces (thermo hardening, metals…).

This equipment is manufactured in the following standard widths: 80, 120 and 140 cm but other sizes can be manufactured on request.

Polymerisation is obtained with radiant transmitters action on the printed surface.



3 models are available:

  • T-IR 80 (1 ou 2 element(s))
  • T-IR 120 (2 elements)
  • T-IR 140 (2 elements)



Characteristics

  • Teflon glass belt resisting to 250°C
  • Variable speed from 1 to 4 m/mn
  • Drying area controlled by a digital panel
  • Movable shutters to dry caps for example

Also available from our range

Flash cure

silk screen

Flash cure

Flash cure is an intermediate dryer preheater for textile inks.

Equipped with short waves infrared transmitters, it is composed of a heating element and a base.
The start of each cycle is controlled by a contact rod which detects the board under the machine head.
For the treatment of fragile meshes, Flash cure is equipped with a half-power programming and with a cooling during the heating time.

It is manufactured in compliance with the NFC 20-30 directive.

Flash cure can be adapted on automatic MHM carrousels. In that configuration, it is supplied with 2 sliding bars.



2 models are available:

  • 40 x 40 cm
  • 40 x 60 cm



Characteristics

  • Drying time adjustment
  • Cooling time adjustment
  • Equiped with wheels and a brake

Also available from our range

Unitex

silk screen

Unitex

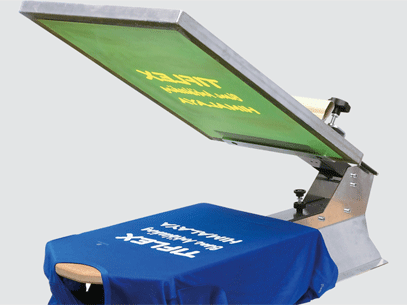

The Unitex is manual screen printing table station dedicated to screen print on various textiles.

The screen format size will be from 30 x 40 cm to 60 x 80 cm max.
The printing station is ready to assemble. It is composed of a bolted base in galvanized iron and must be screwed on a workbench or a table.
The base and the printing head stand together.
The frame will be inserted by the back of the printing head in the clamping jaws.
And it will be perfectly maintain thanks to 2 thumbing screws with large plastic collar. While assembling the Unitex, the alignment and off contact of the printing head can be adjusted from the pallet.

The Unitex is a functional and easy printing for advanced user or beginner who wishes to start learning textile screen printing.

Also available from our range

Carrousel

silk screen

Carrousel

The Carrousel is a manual machine dedicated to print 1 to 8 colours on tee-shirts, sweat-shirts, caps…

Carrousel is composed of a perfectly stable stiff base. The boards and screen holders are rotating independently one from the other.
Carrousel can be equipped with 5 different board sizes : man XXL, man XL, man L, woman M and child S.
Carrousel is delivered dismantled.


4 models are manufactured : 4, 6 or 8 moving stations.

  • 4 moving stations, 4 board
  • 6 moving stations, 4 board
  • 6 moving stations, 6 board
  • 8 moving stations, 8 board


Characteristics

  • Screens by 3 micrometric buttons (x and y axes and rotation)
  • Boards : front / backward
  • Off contact
  • Parallelism screen/board
  • Fast registration
